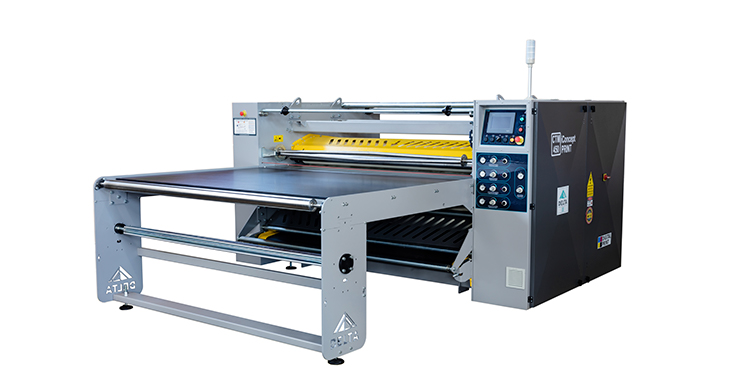

Delta Máquinas Têxteis has developed the Sublimation Calender for industries seeking greater productivity, quality and profitability in the thermotransfer process. The project’s main feature is a heating system that guarantees a uniform temperature and greater use of the thermal cylinder’s circumference. An intelligent solution for working on rolls or cut pieces, with standardization and automation, whatever the need.
– Chrome-plated cylinder for greater productivity;
– Highly durable 100% Nomex felt;
– Uniform temperature across the entire face of the cylinder;
– Adjustments for footage, temperature, speed, etc;
– Recipe configuration via HMI;
– Heating system with automatic start-up;
– Cooling system with automatic stop;
– NoBreak system to avoid losses in the event of a power failure;
– Working options – roll/roll, piece/roll or piece/piece;
– Ensuring process standardization and automation.
– Entrance table;
– Internal parts conveyor belt;
– Anti-aesthetic bar;
– Winder and output aligner.
Useful width: 1800mm
Machine width: 3125mm
Machine height: 1580mm
Machine length: 2276mm to 3836mm
Working speed: 1.5m/min to 6m/min
Installed power: 34KW
Supply voltage: 220/380V
