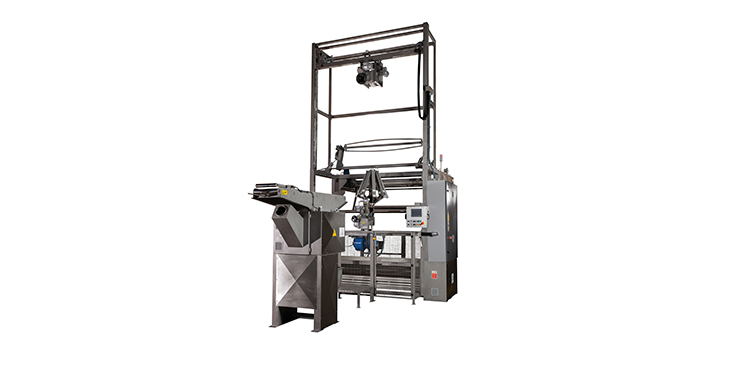

The Delta Máquinas Têxteis Knit Opening Machine was developed for the knit opening process in processing, guaranteeing more agility and quality. An intelligent solution made up of a turntable, overhead swivel, basket with needle failure sensor and cutting disc, centralizer and baler. Its stainless steel structure is a distinguishing feature, as is the possibility of standardizing setup parameters through pre-programmed recipes. Perfect for industry aligned with the 4.0 concept!
– Structure in 304 stainless steel for greater durability;
– Opening of different weights;
– Exclusive digital needle failure sensor;
– Synchronized modules to avoid article stretching;
– Automated cutting system;
– Recipe configuration via HMI;
– Integration of data with ERP;
– Ensuring process standardization and automation.
– Turntable;
– Rope mesh squeezer;
– Mobile doga centralizer;
– Needle failure sensor;
– Foulard.
Useful width: 2200mm
Machine width: 3600mm
Machine height: 6000mm
Machine length: 7500mm
Working speed: 0 to 100m/min.
Installed power: 15KW
Supply voltage: 220/380/440V.
